Remanufactured

$148.00
  • 10 in stock
  • Additional 2 ready to ship within 2-3 days

Repair

$103.60
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

  • IC693MDL731RMN

Overview

Features

  • 12 to 24VDC output voltage range (+20%, -15%)
  • 1,500V isolation between field side and logic side
  • Output current:
    • 2 Amps max. per point
    • 4 Amps max. per fuse at 122°F
    • 2 Amps max. per fuse at 140°F
  • Output characteristics:
    • 0.75V max. output voltage drop
    • 1 mA max. off-state leakage
    • 2ms max. On and Off response time
  • 55mA power consumption (all outputs on) from 5V bus on backplane)

Description

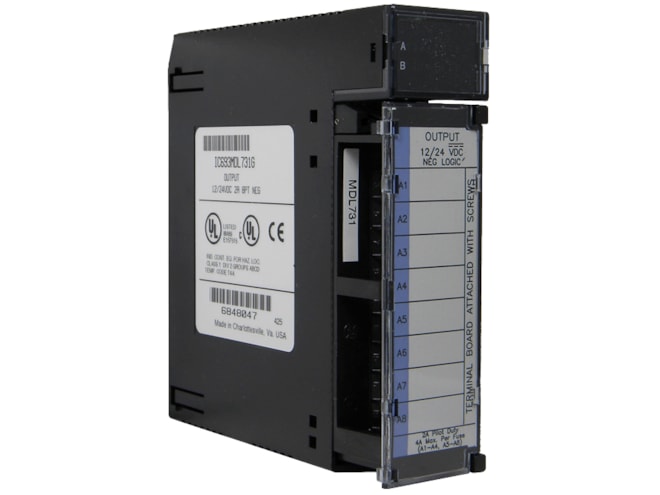

The GE-Emerson IC693MDL731 12 to 24VDC Negative Logic 2 Amp Output Module sinks current from the loads to the user common or negative power bus. The output device is connected between the positive power bus and the module output. The output characteristics are compatible with a wide range of user-supplied load devices, such as: motor starters, solenoids, and indicators. Power to operate the field devices must be supplied by the user.

LED indicators which provide the ON/OFF status of each point are located at the top of the module. This LED block has two horizontal rows with eight green LEDs in each row. This module uses only the top row labeled A1 through 8 (points 1 through 8). A red LED (labeled “F”)on the right and centered between the two rows of green LEDs functions as a blown fuse indicator; it turns ON when any fuse is blown. The module has two 5 amp fuses with each fuse protecting four outputs; the first fuse protects A1 - A4, the second fuse protects A5 - A8. The fuses are electrically connected to the same common. An insert goes between the inside and outside surface of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded blue to indicate a low-voltage module. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
