Overview

Features

  • Battery:
    • 10yr shelf life at 68°F
    • 6mo nominal memory retention without applied power
  • 1 Amp current required from 5V bus
  • RS422/485 compatible, programmer serial attachment
  • System designed to support the VME standard C.1
  • 80C186 microprocessor
  • One serial port

Description

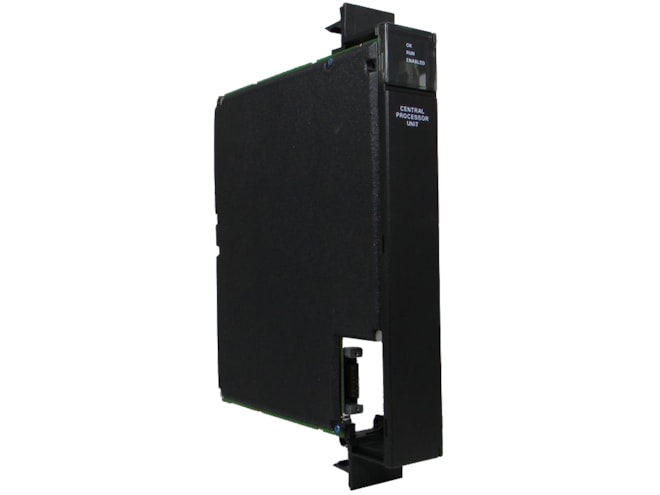

The GE-Emerson IC697CPU732 Series 90-70 Programmable Controller CPU controls industrial equipment and processes in real-time. To communicate with I/O and "smart option" modules, the device uses a rack-mounted connection backplane. The microprocessor is capable of floating point decimal calculations at speeds of 0.4 microseconds per Boolean function. Up to 8K analog I/O is supported by the CPU, along with any mixture of 512 inputs and outputs.

The CPU supports IC697 LAN interface modules, IC697 discrete and analog I/O modules, multiple coprocessor and communications modules, I/O Link Interface modules, and bus controllers for IC66* modules. Configuration of this device is accomplished by connecting the module to a programmer computer and running IC641 programming software. DIP switches and jumpers are not used in the configuration of this product. For security, configuration settings are password protected. User memory, programming data, the calendar, and the clock are maintained by a lithium CMOS battery.
