Overview

Description

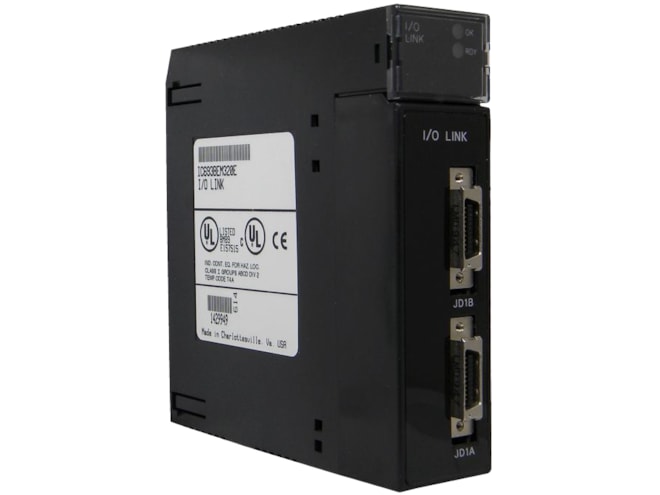

The GE-Emerson IC693BEM320 I/O Interface Slave Module provides an interface between a Series 90-30 PLC and a proprietary Fanuc I/O LINK in a Fanuc CNC (Computer Numerical Control), or a Series 90-70 PLC. This module is configured as a slave device only (see the IC693BEM321 for master applications). The Fanuc I/O LINK is a serial interface that provides a high-speed exchange of data between a master and up to 16 slaves.

The Series 90-30 I/O LINK Interface module is configured as a slave device only and allows the Series 90-30 PLC to send either 32 or 64 I/O points to the I/O LINK.  The I/O LINK module must be configured as either a 32 or 64-point I/O module during installation by setting a jumper plug inside of the front cover of the module to either 32 I/O or 64 I/O. An  I/O LINK Interface module can be installed in any model of Series 90-30 PLC, and any number of I/O LINK Interface modules can be installed in a system within the current limits of the baseplate and other I/O modules installed in the baseplate.
