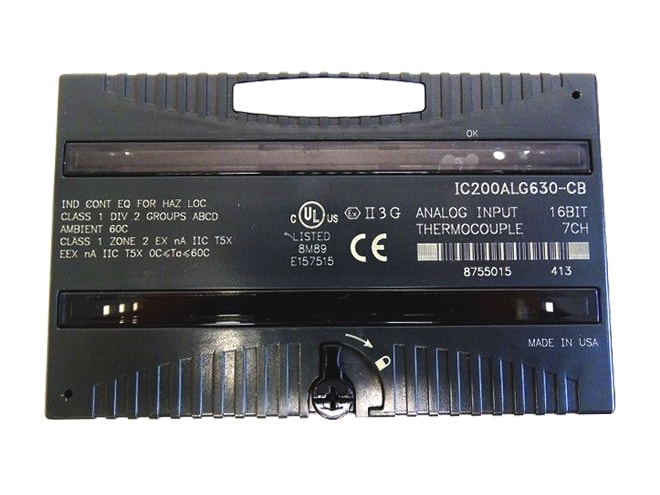

Remanufactured GE-Emerson IC200ALG630 Analog Input Module

16-bit, seven thermocouple or millivolt input channels, no external power supply required.

Remanufactured

$909.00
$818.10
Availability
  • 4 in stock
  • Additional 1 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200ALG630RMN
Manufactured
Product Specs

Features

  • Backplane current consumption:
    • 125mA maximum at 5V output
    • 125mA maximum at 3.3V output
  • OK LED:
    • Green - indicates backplane power is present
    • Amber - indicates module fault
  • Thermocouple types: J, K, T, S, R, none (used for mV inputs)
  • 19.5 to 625mV spans (+/–)
  • 15 bits + sign converter resolution

The GE-Emerson IC200ALG630 Analog Input Module receives power from the backplane power supply. Each input channel can be configured to report millivolts ranges as 1/100 of mV, or thermocouple inputs as linearized temperature in tenths of degrees Celsius or Fahrenheit, with or without cold junction compensation.

The module automatically performs A/D calibration at powerup. Automatic calibration is then repeated periodically to compensate for changes in the ambient temperature. New calibration values are filtered into the current calibration values. The module uses seven words of analog input data and seven optional words of analog output data. The module exchanges data in the same manner as other types of I/O modules: it provides all its input data when requested. Diagnostics include open thermocouple, over/underrange, high/low alarm, and thermistor error.
