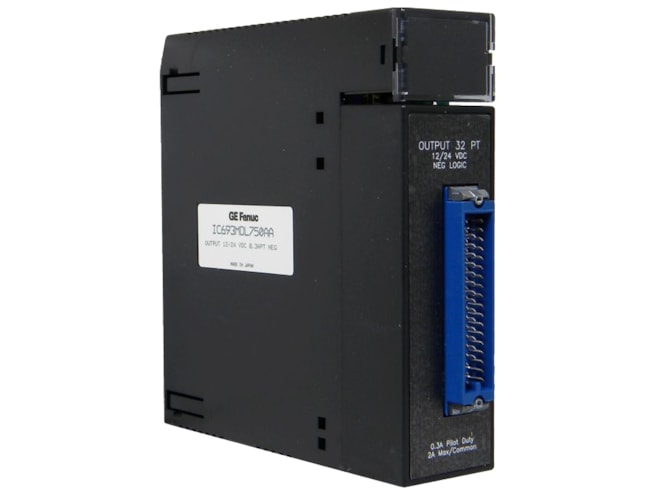

Remanufactured GE-Emerson IC693MDL750 12 to 24VDC Negative Logic Output Module

Provides 32 output points in four groups of eight with two common pins for each group.

Remanufactured

$780.00
$702.00
Availability
  • 32 in stock
  • Additional 5 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL750RMN
Manufactured
Product Specs

Features

  • 12 to 24VDC output voltage range (+20%, -15%)
  • 1,500V isolation between field side and logic side
  • Output current:
    • 0.3 Amp max. per point
    • 2 Amp max. per common at 140°F
  • Output characteristics:
    • 0.24V max. output voltage drop
    • 0.1mA max. off-state leakage
    • 2ms max. On and Off response time
  • 21mA internal power consumption (all outputs on) from 5V bus on backplane

The GE-Emerson IC693MDL750 12 to 24VDC Negative Logic Output Module sinks current from the loads to the user common or negative power bus. The output device is connected between the positive power bus and the module output. The output characteristics are compatible with a wide range of user-supplied load devices, such as motor starters, solenoids, and indicators. Power to operate the field devices must be supplied by the user.

Connections from the output circuits are made to the user’s output devices through a 50-pin connector mounted on the front of the module.

This module does not have LED indicators to indicate circuit status. This output module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
