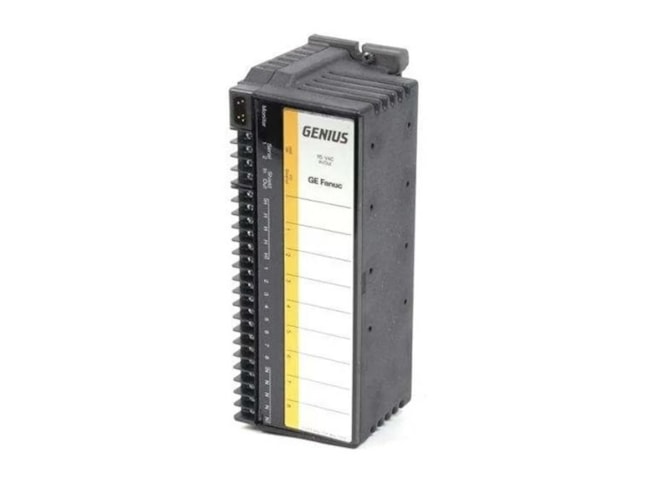

Remanufactured GE-Emerson IC660TSS100 Genius Terminal Assembly

Used for isolated I/O blocks that operate on a voltage of 115 Volts AC or 125 Volts DC.

Remanufactured

$959.00
$863.10
Availability
  • 4 in stock

Repair

$767.00
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660TSS100RMN
Manufactured

Features

  • 8 circuits separated into 2 isolated groups
  • 47 to 63 Hz input frequency
  • 10% maximum ripple

The GE-Emerson IC660TSS100 Genius Terminal Assembly features output pulse test capability, CPU redundancy type, bus switching module control, selectable input filter time, output power-up options, several different diagnostics checks, and more.

The terminal assembly has a power supply dropout time of 1 cycle when operating with AC voltage and 10 milliseconds when utilizing DC voltage. The input load network possesses a resistor rating of 13K Ohms for both AC and DC voltage, accompanied by an input processing time ranging from 0.8 to 2 milliseconds.

The provided input diagnostics cover errors related to overtemperature, open wire, failed switch, and loss of I/O power. Additionally, the IC660TSS100 terminal assembly is equipped with output diagnostics, encompassing short circuit, overtemperature, and overload detection capabilities.
