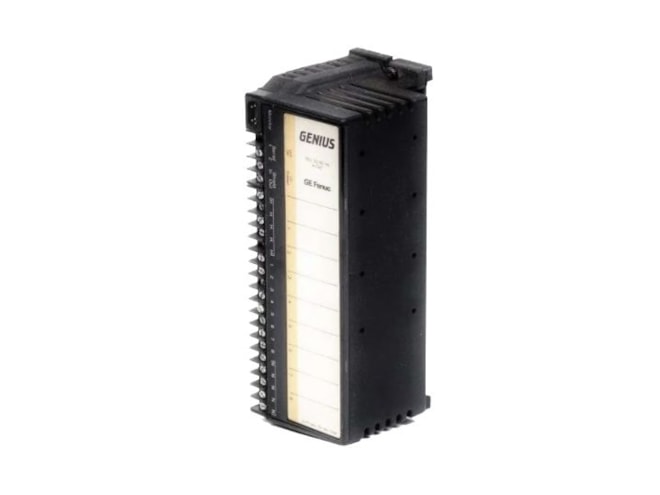

Remanufactured GE-Emerson IC660TSD100 Genius Terminal Assembly

Provides 8 circuit combination input and output.

Remanufactured

$959.00
$863.10
Availability
  • Additional 224 ready to ship within 2-3 days

Repair

$767.00
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660TSD100RMN
Manufactured

Features

  • 32° to 140° operating temperature
  • 8.5 watts
  • 93-132 VAC operating voltage
  • 47-63 Hz frequency

The GE-Emerson IC660TSD100 Genius Terminal Assembly has a 1-cycle power supply dropout time, with a single cycle being 16.7 milliseconds at 60 Hertz and 20 milliseconds at 50 Hertz. The component's block-to-block isolation rating stands at 1500 Volts, and it is capable of dissipating a maximum of 16 Watts of heat when utilizing 8 inputs.

The IC660TSD100 terminal assembly requires a minimum voltage of 60 Volts RMS for the non-tristate inputs in the off-state, and 20 Volts RMS for the on-state. The maximum leakage through the input device is 1.5 milliamps in the off-state, while the maximum switch current threshold in the on-state is 6 milliamps RMS. The tristate inputs can operate within an acceptable voltage range of 16 to 40 Volts RMS in the off-state and 4 Volts RMS in the on-state. The typical input processing time is 2 milliseconds, and the input filter times are selectable.
