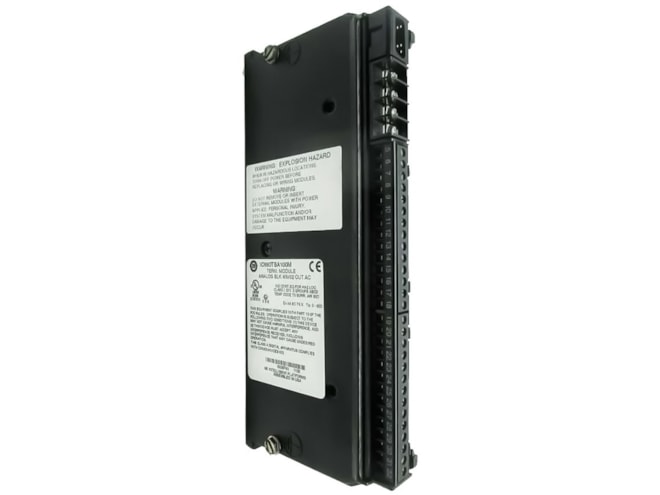

Remanufactured GE-Emerson IC660TSA100 Genius Terminal Assembly

Single-phase, solid-state electronic wiring module with 4 analog inputs.

Remanufactured

$959.00
Availability
  • Additional 35 ready to ship within 2-3 days

Repair

$767.00
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660TSA100RMN
Manufactured

Features

  • 4 analog inputs
  • 2 analog outputs
  • 115V AC power supply
  • 24 to 48V DC power supply range
  • 1500 volts block to block isolation

The GE-Emerson IC660TSA100 Genius Terminal Assembly is a versatile electronic wiring module with a solid-state design, designed for use in various small-scale industrial applications where there's a need to connect four analog inputs to a GE Fanuc Series 90-70 Programmable Logic Controller (PLC). Additionally, it features two analog outputs that the PLC can utilize to generate a response signal. The module can be powered either directly from a single-phase 115 Volts AC rated utility line or through a 24 to 48 Volts DC power supply.

At a reading temperature of 25 degrees Celsius, the module has an accuracy rating of 0.5%. The module is also equipped with built-in diagnostic features and includes a port for connecting monitoring devices. This port allows for easy connection of programmer devices and handheld terminals, facilitating quick and efficient access.

The IC660TSA100 block is suitable for operation in environments with an ambient temperature ranging from 0 to 60 degrees Celsius, and it can withstand non-condensing ambient humidity conditions.
