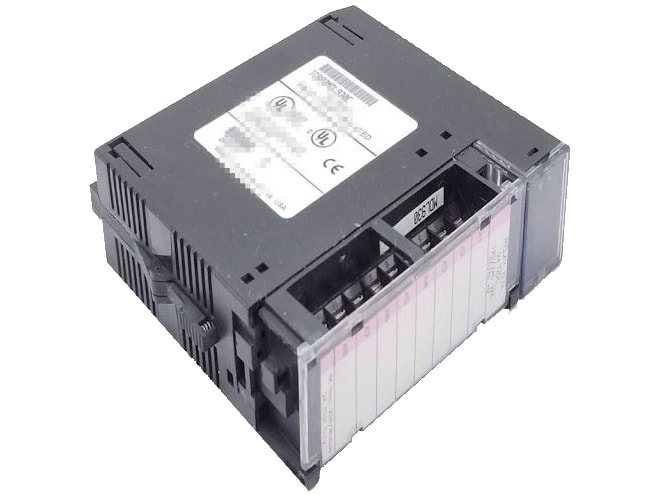

Repair GE-Emerson IC200ALG432 VersaMax Analog Mixed Module

Provides four -10 to 10VDC analog inputs and two -10 to 10VDC analog outputs.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

$408.80
Availability
  • Out of Stock

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200ALG432REP
Manufactured
Product Specs

Features

  • 250VAC continuous; 1,500VAC for 1min. isolation user input to logic (optical) and to frame ground
  • FLD PWR LED indicates field power is present
  • OK LED indicates backplane power is present
  • 60mA max. backplane current consumption:
  • Loss of user side power diagnostics

GE-Emerson IC200ALG432 VersaMax Analog Mixed Module provides 4 words of analog input data and receives 2 words of analog output data. An external 24V power supply is required for the outputs. For inputs, power for the user's transceivers must be supplied from an external source. Intelligent processing for this module is performed by the CPU or Network Interface Unit. The module provides 4 words of analog input data and receives 2 words of analog output data.
