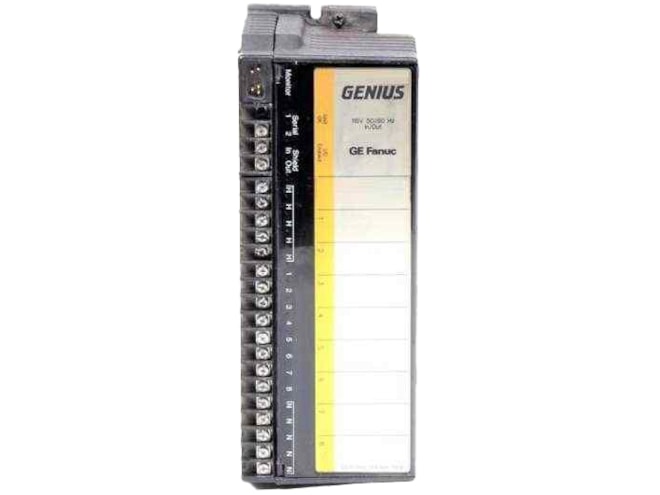

Repair GE-Emerson IC660BBD100 Genius 8-Circuit Grouped I/O Block

Provides eight independent discrete circuits assembled in a single group with an operations rating of 115 VAC.

Repair

$1,038.40
Availability
  • Usually ships in 3-5 business days

Remanufactured

$1,298.00
$1,168.20
Availability
  • 12 in stock
  • Additional 83 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660BBD100REP
Manufactured

Features

  • Unit OK, I/O Enabled LED's (I/O Block)
  • LED's (each circuit): On logic side of switch
  • 1,500V block to block
  • 16W max. isolation with 8 inputs
  • 43.5W max. heat dissipation with 8 outputs on at 2 Amps
  • 8.5W standby power (all inputs and outputs off)
  • 93 to 132VAC operating voltage (single source)
  • 47 to 63Hz frequency
  • 1 cycle power supply dropout time (16.7mS at 60Hz, 20mS at 50Hz)

The GE-Emerson IC660BBD100 Genius 8-Circuit Grouped I/O Block includes circuits that can each individually ask as input, tri-state input, or output. A separate power supply is not required.

Genius blocks are designed to operate over the Genius LAN network, providing a reliable OS if a CPU, bus interface, or network cable experiences a communication failure. Genius blocks automatically switch to a backup CPU in the case of two or more CPUs operating concurrently in a redundant configuration, if there is a communication failure with the main controller.

Genius I/O blocks are considered "open equipment." They must be installed within protective housing and kept in an area with suitable airflow free of contaminants.
