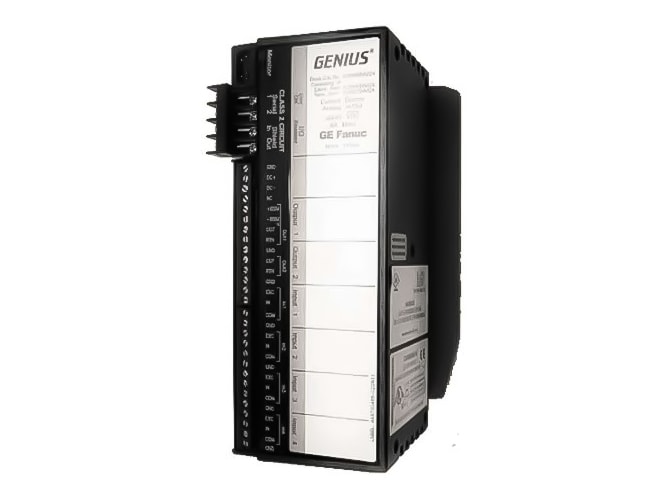

Repair GE-Emerson IC660TBA103 Genius Terminal Assembly

I/O module with 6 thermocouple-compatible inputs divided into 3 isolated groups.

Repair

$992.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

$1,240.00
Availability
  • Additional 1 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660TBA103REP
Manufactured

Features

  • 115 Volts AC
  • 125 Volts DC
  • 22 to 14 AWG wire size are recommended

The GE-Emerson IC660TBA103 Genius Terminal Assembly is specifically designed for an I/O module featuring 6 thermocouple-compatible inputs, which are organized into 3 isolated groups. The I/O module incorporates transformers for power isolation and optical couplers for signal isolation. Each input channel on the module accepts inputs from thermocouple types: N, S, R, B, E, T, K, or J. To convert input values to different units, the I/O module utilizes an internal table specific to the configured thermocouple type.

The input characteristics of the I/O module encompass a voltage measurement range of -25 to 150 millivolts, providing a resolution of less than 4 microvolts and a typical accuracy of 10 microvolts.
