Repair GE-Emerson IC693MDL250 16-Point Isolated Input Module

120VAC rated voltage.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

$2,017.00
Availability
  • Out of Stock

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL250REP
Manufactured
Product Specs

Features

  • 0 to 132VAC (47 to 63Hz) input voltage range, 120VAC nominal
  • 16 isolated inputs per module
  • Isolation:
    • 250VAC continuous field to backplane; 1,500VAC for 1 minute
    • 250VAC continuous group to group; 1,500VAC for 1 minute
  • 7.0mA input current per point (typical) at rated voltage
  • 20 to 2,540ms input filter times in 20ms increments
    • Sent from CPU
    • Enabled of DIP switch
  • 220mA power consumption (with all inputs on) from 5V bus on backplane

The GE-Emerson IC693MDL250 16-Point Isolated Input Module includes input points that can be used on different phases of the AC supply or powered from the same supply. An RC snubber protects each input against transient electrical noise on the power line.

The module's input filtering time can be changed during system operation by the application program. This module can be used with a Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) Terminal Block. Extended terminal blocks provide the extra shroud depth typically needed for field wiring to AC devices.

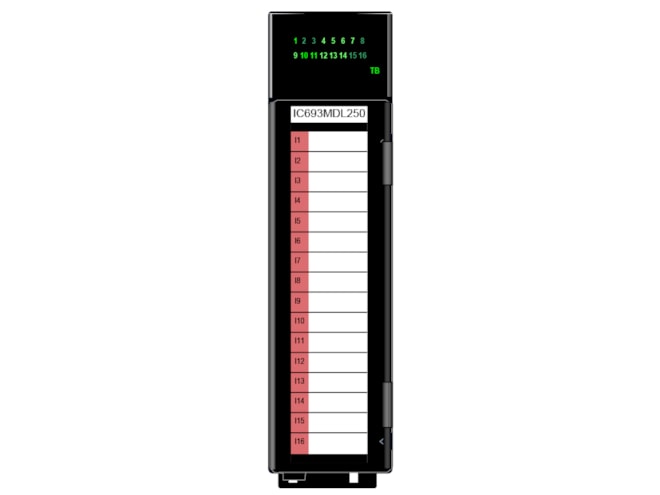

Individually numbered LEDs show the ON/OFF status of each Input point. The TB LED is green when the module’s removable terminal block is locked in place. It is red when the terminal block is not locked.

The red band on the door card shows that MDL250 is a high-voltage module.

This module can be installed in any I/O slot in a Series 90-30 or PACSystems RX3i system. It must be used with RX3i CPU release 3.50 or later.
