Repair GE-Emerson IC693MDL916 4 Amp 16-Point Relay Output Module

Provides 16 Form A relays for controlling output loads.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • Out of Stock

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL916REP
Manufactured
Product Specs

Features

  • External power supply:
    • 0 to 125VDC (5/24/125VDC nominal)
    • 0 to 250VAC (47 to 63Hz), 120 to 240VAC nominal
  • Isolation:
    • 1,500VAC field to backplane for 1min
    • 250VAC continuous group to group
  • 300mA power consumption at 5VDC from backplane max. (all outputs ON)

The GE-Emerson IC693MDL916 4 Amp 16-Point Relay Output Module includes outputs that provide a high degree of noise immunity, minimizing the need to add external snubbers. provide a high degree of noise immunity, minimizing
the need to add external snubbers. The relay outputs can control a wide range of output devices, such as motor starters,  solenoids, and indicators. The user must supply the AC or DC power to operate the field devices.

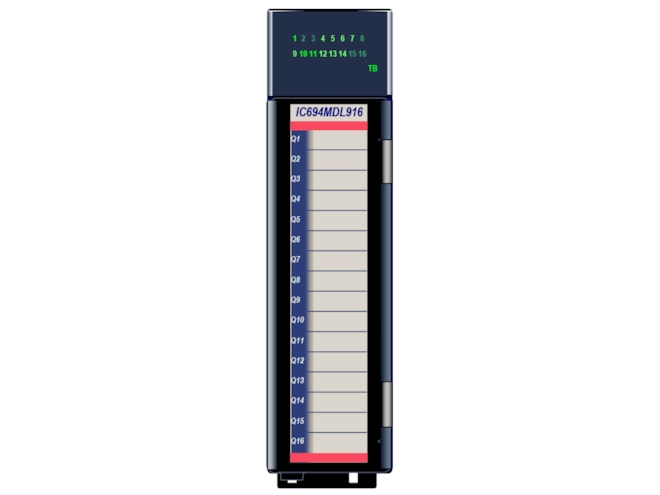

This module is available as a PACSystems RX3i module (catalog number IC694MDL916), illustrated at left, or as a Series 90-30 PLC module (catalog number IC693MDL916). The RX3i version is only compatible with a PACSystems RX3i CPU. The Series 90-30 version can be installed in any I/O slot in a PACSystems RX3i or Series 90-30 PLC. See the next page for details of specific CPU version requirements.

Module MDL916 can be used with a Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) Terminal Block. Extended terminal blocks provide the extra shroud depth typically needed for shielded wires. See the PACSystems RX3i System Manual, GFK-2314 revision B or later for more information about terminal blocks. Terminal Blocks are ordered separately.

A DIP switch on the back of the module is used to select the outputs’ default mode: Force Off or Hold Last State. The module must be removed from the backplane to set this switch.

Individually-numbered LEDs indicate the ON/OFF state of each output. The red/green TB LED is green when the module’s removable terminal block is locked in place. It is red when the terminal block is not locked.

Module IC694MDL916 reports the Addition of Terminal Block, Loss of Terminal Block, Hold Last State Configuration Mismatch, and Module Over Temp messages to the RX3i CPU. Module IC693MDL916 does not report diagnostic status to the CPU.

The red bands on the door card show that MDL916 is a high-voltage module.
