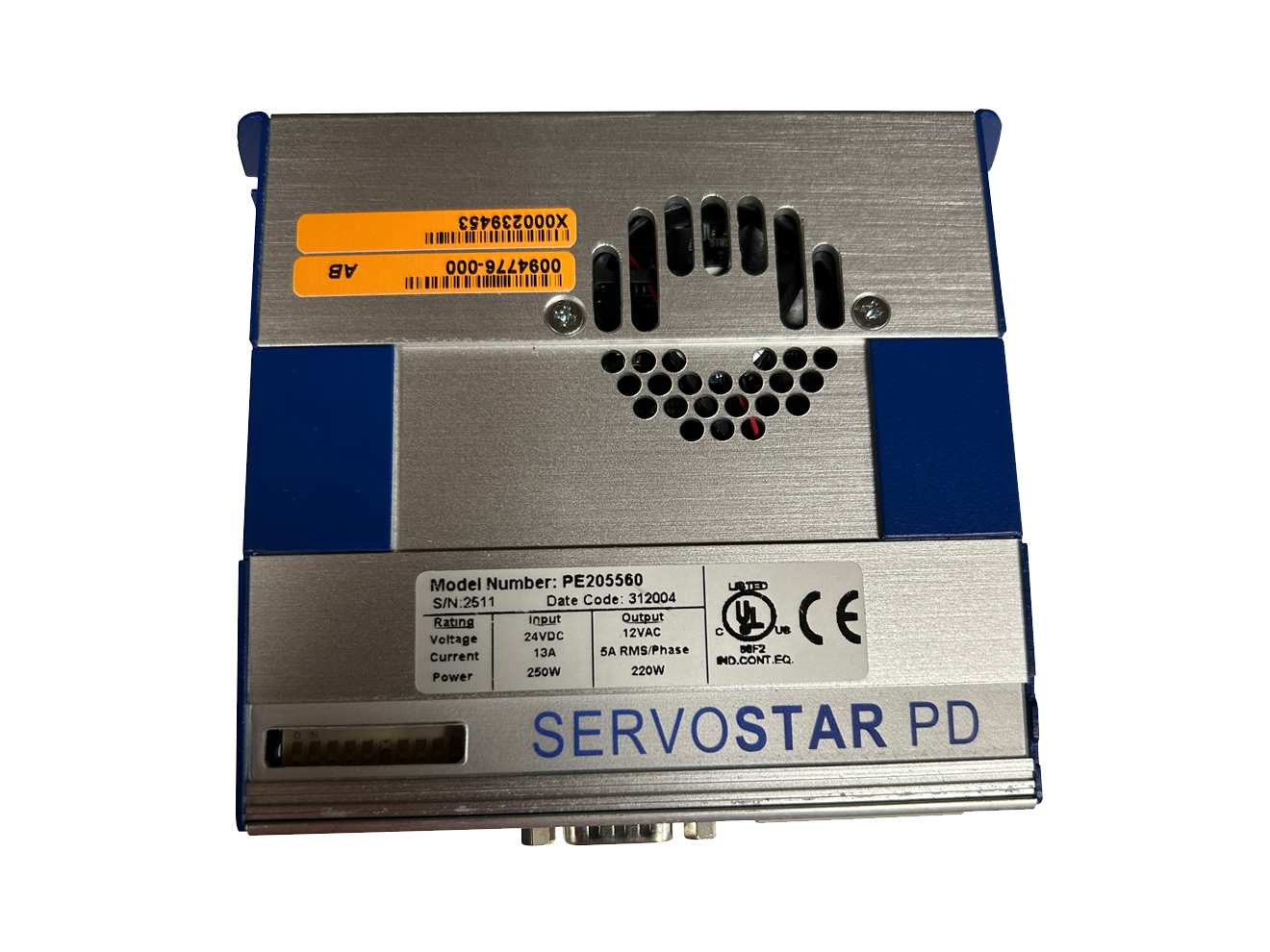

Remanufactured Kollmorgen PE205560 SERVOSTAR PD Mini Servo Drive
Encoder feedback, analog interface.
Overview
Features
- Output continuous current per Phase (RMS/Phase): 5 Amps @ 45˚C
- Output peak current per phase (RMS/Phase): 10 Amps (0.5sec)
- DC bus input voltage: 16 to 56VDC
- Rated input power: 128W
- Rated output continuous power: 120W
- Fully digital current, velocity, and position servo loop
- Sinusoidal commutation
- +/-10VDC analog command
- Self-protecting isolated power stage
- Opto-isolated inputs and outputs
- Setup via MOTIONLINK for Windows
Description
The Kollmorgen PE205560 SERVOSTAR PD Mini Servo Drive is a fully digital amplifier that can be operated in Current, Velocity, or Position mode. The advanced patented sinewave commutation technology provides smooth, precise low-speed control and high-speed performance. The precision balanced current loops with closed loop sensors provide accurate torque control.
