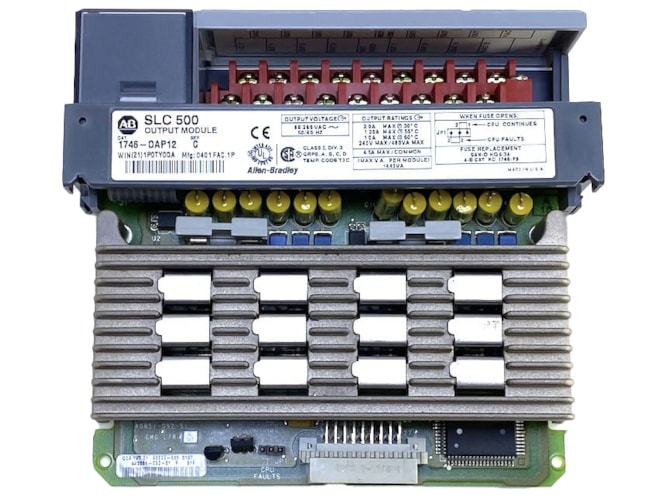

Remanufactured Allen-Bradley 1746-OAP12 SLC 500 Discrete AC Output Module

12 inputs, 370mA at 5.1V backplane current.

Remanufactured

$480.48
Availability
  • 8 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-OAP12RMN
Manufactured
Product Specs

Features

  • Max. continuous current per module:
    • 9.0A @ 86°F
    • 6.8A @ 131°F
    • 6.0A @ 140°F
  • Max. continuous current per point:
    • 2.0A @ 86°F
    • 1.25A @ 131°F
    • 1.0A @ 140°F
  • 10mA load current
  • 2mA OFF state leakage current
  • Output delay time:
    • ON to OFF: 1ms
    • OFF to ON: 11ms
  • 85 to 264VAC operating voltage range
  • 120/240VAC output voltage

The Allen-Bradley 1746-OAP12 SLC 500 Discrete AC Output Module is a high-current module that fits any slot of the 1746 chassis and includes a color-coded Removable Terminal Block (RTB). The module includes fused commons to protect the module, and a blown fuse LED indicator. The module provides an isolation, as one group of output channels may continue to operate if a fuse on an adjacent channel group is blown. The module's internal fuse may be modified to monitor the blown fuse, if the jumper is set to short pins 2 and 3 (the jumper defaults to 2 and 1, disabling fuse monitoring). The module is compatible with any SLC 500 processors.
