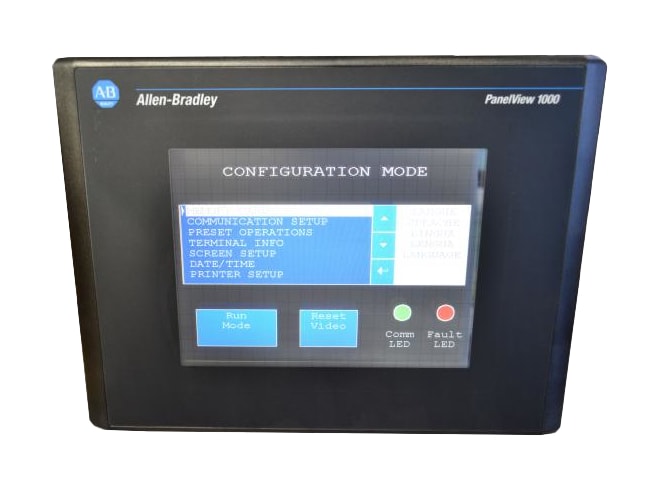

Remanufactured Allen-Bradley 2711-T10C20 PanelView 1000 Color Operator Interface Terminal

TFT with CCF backlight display; 39W (132 BTU/hr) heat dissipation.

Remanufactured

$1,002.40
Availability
  • 2 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 2711-T10C20RMN
Manufactured

Features

  • AC power:
    • Supply voltage limits: 85 to 264VAC (47 to 63Hz)
    • Power consumption: 55VA max.
  • DC power:
    • Supply voltage limits: 18 to 32VDC (24VDC nominal)
    • Power consumption: 24W max. (1.0A @ 24VDC)
  • NEMA Type 12/13, 4X (indoor use only), IP54, IP65 enclosure
  • Status indicators:
    • COMM: green
    • Fault: red
  • 1,008Kbyts total application flash memory (application screens)
  • 8.3 x 6.2in display size (640 x 480px)
  • 32 to 131°F operating temperature

The Allen-Bradley 2711-T10C20 PanelView 1000 Color Operator Interface Terminal allows users to interface visually with processes and control specific process areas, via an analog-resistive color touchscreen. A built-in Ethernet connection port with auto-negotiation capability allows the OIT to interface with Allen-Bradley controllers or 3rd party devices.
