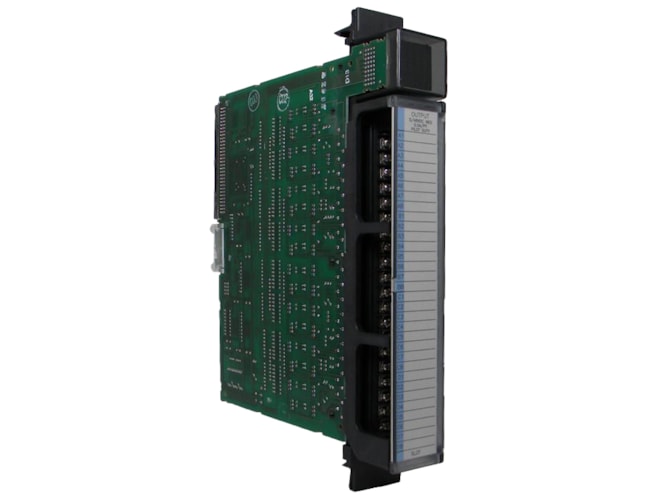

Remanufactured GE-Emerson IC697MDL753 Series 90-70 Discrete Output Module

5/48VDC, 0.5 Amp, 32 points - 2 isolated groups of 16 points each.

Remanufactured

$575.00
$517.50
Availability
  • 37 in stock

Repair

$460.00
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC697MDL753RMN
Manufactured
Product Specs

Features

  • Negative Logic
  • 0.5 Amp capacity per point
  • High inrush capacity (10x rated current)

The GE-Emerson IC697MDL753 Series 90-70 Discrete Output Module is a wide-range module in that the rated voltage can be 5VDC or 10 to 60VDC. It provides a high degree of inrush current at 10 volts to 60 volts which makes the outputs suitable for a wide range of loads that have such characteristics. It also operates at TTL levels.

LED indicators that give the ON - OFF status of each point on the logic (PLC) side of the circuit are located at the top of the module.

The module is mechanically keyed to ensure correct replacement with a similar module type in the field. I/O references are user configurable without the use of jumpers or DIP switches on the module.

Configuration is done using the configuration function of the MS-DOS or Windows programming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT, PS/2, or compatible PC.
