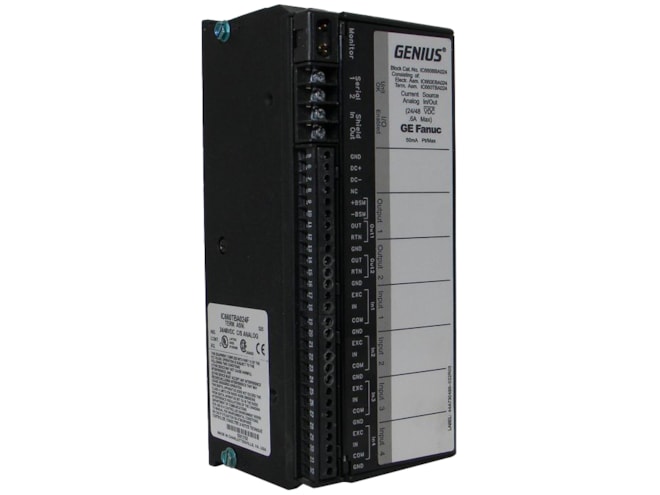

Repair GE-Emerson IC660BBA024 Genius Current-Source Analog I/O Block

Provides six 4 to 20mA analog circuits: 4 inputs and 2 outputs.

Repair

$780.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

$975.00
$877.50
Availability
  • 9 in stock
  • Additional 2 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660BBA024REP
Manufactured
Product Specs

Features

  • Unit OK, I/O enabled LEDs (I/O Block)
  • 1,500V for one minute block to block isolation
  • 1,500V RMS group to group isolation
  • 12W max. heat dissipation
  • 18 to 56VDC power supply voltage
  • 600mA max. current
  • 10% max. ripple
  • 10ms min. PS dropout time
  • Isolated channels
  • No user calibration required for operation
  • Software configurable
  • Advanced diagnostics
  • Dedicated bus switching module control

The GE-Emerson IC660BBA024 Genius Current-Source Analog I/O Block is used to interface a controller to devices that provide or accept 4mA to 20mA analog signals. The block has four 4 to 20mA current inputs. Each input provides a 24V current loop power supply and is isolated from all other circuits within the block. The two output channels provide power and control of two 4 to 20mA current loops. The output channels and BSM circuitry are electrically common, but isolated from the inputs.

All circuits on the block support independent selection of linear scaling values. These values can be used to convert the internal values into engineering units suitable for the application.
