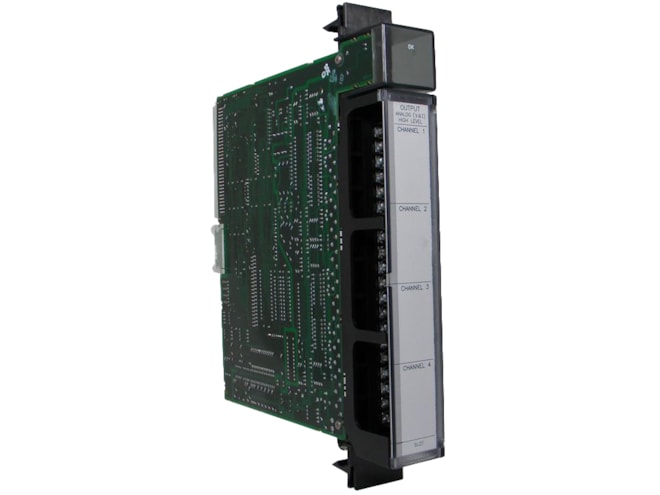

Repair GE-Emerson IC697ALG320 High Level Analog Output Module

Voltage/current module, provides 8 channels.

Repair

$460.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

$575.00
$517.50
Availability
  • 7 in stock
  • Additional 26 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC697ALG320REP
Manufactured
Product Specs

Features

  • Output module has four outputs individually configurable for voltage or current
  • Provides unipolar or bipolar analog voltage outputs up to Ç 10 full scale
  • Provides 0 to 22.5 milliamp current loop signals
  • Individual user scaling on each output channel
  • No jumpers or DIP switches for user to configure
  • Calibrated at factory with factory calibration data stored in non-volatile EEPROM memory

The GE-Emerson IC697ALG320 High Level Analog Output Module can be configured using the MS-DOS or Windows programming software running on Windows 95 or higher over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT,PS/2 or compatible PC.

The module accepts digital data from the CPU or other controllers accessing the PLC backplane. This output data is converted by a  Digital to Analog (D/A) converter to analog outputs of up to 10V full scale, or 0 to 22.5 milliamp current loop signals.

The basic converter is 16 bits resolution (1 part in 65,536) with 14-bit monotonicity. Outputs are isolated from the backplane and are protected against transient and steady-state overvoltage conditions.

Analog outputs use %AQ references in the PLC. A maximum of 8K words of %AQ memory is available in the PLC. Each output channel uses one word (16 bits) of %AQ memory.
