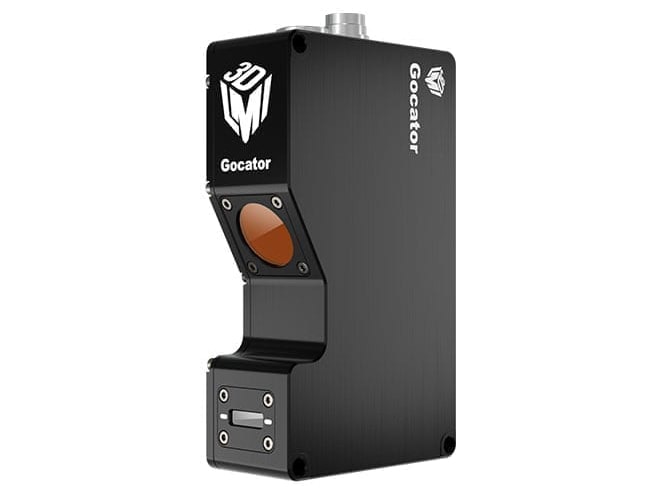

The LMI Technologies 312490A-2-R-01-S Model 2490 Gocator is a 3D smart line profile sensor pre-calibrated to scan micron-level details. The 2400 series of Gocators operates at double the speed of the 2300 series, can be set up and controlled via a web browser or SDK, includes built-in tools with no programming required, and is extendable via GDK and GoMax.
The Gocator's camera measures micron-level features with a 2-megapixel camera, scanning parts for extremely small defects and providing 3D quality inspection. The faster scanning speed of the 2400 series also allows an increase in speed for inline processes with higher resolutions, and multiple exposures can be used to accurately measure high-contrast targets. With an X resolution down to 6μm, the user can generate data points on very tiny edges or narrow gaps.
The Gocator 2400 series' scanning software includes a browser-based GUI and open-source SDK for configuration and real-time 3D visualization. The open-source SDK, native drivers, and industrial protocols allow for integration with user applications, third-party image processing applications, robots, and PLCs.
